Weighing

This area is addressed by the United States and European Pharmacopeia “Minimum Sample Weight”.
The smallest sample a balance can be used to weigh is dependent on a number of variables: external environment, precision of the balance and customer performance requirements. Ultimately it can also only be calculated in situ.
This however does not help when you are trying to decide what balance to purchase.

So, to give an indication we have generated this guide. However it is important to note this is based upon:

• The balance is being used in good laboratory conditions, where external environmental factors are kept to a minimum.
• A balance from a reputable balance manufacturer is being used

Balance Readability                        Smallest sample weight
0.000 1mg                                               0.1mg
0.001mg                                                  1mg
0.01mg                                                     10mg
0.1mg                                                       100mg
1mg (0.001g)                                         1g
0.01g                                                         10g
0.1g                                                           100g

Readability
Readability is the smallest increment of mass that a laboratory balance can display. It represents the fi nest resolution of measurement and is typically expressed in grams (g), milligrams (mg), or micrograms (μg). This does not indicate the smallest sample weight you can weigh out on a balance ( see below)

Capacity
Determine the maximum weight you need to measure. Ensure you take into account any tare vessels / container that may be used.
A tare vessel (or tare container) is a container used to hold a substance while being weighed in a laboratory. The term tare refers to the weight of the container itself, which is subtracted from the total weight to obtain the net weight of the substance.
Most modern laboratory balances have a tare function, which allows the user to place the empty container on the balance and press the tare button. This resets the displayed weight to zero, so when the substance is added, only its weight is shown.

Common Examples:

• Weigh boats (small plastic or aluminium dishes for powders)
• Beakers or flasks (for liquids or bulk solids)
• Filter paper (for weighing precipitates)
• Centrifuge tubes (for biological samples)

You need to take into account the weight of the tare vessel / container when selecting a balance. For example if you are weighing a sample with a weight of 150g and you use a tare vessel / container weighing 50g – you will need a balance with a minimum capacity of 200g

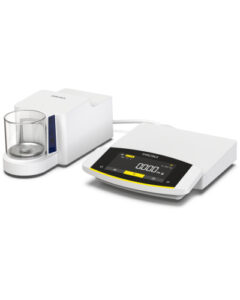

Micro and Ultra -Micro Balances

Readability: 0.001mg and 0.000 1mg
Ideal for ultra-sensitive measurements in advanced research and pharmaceutical laboratories.
Typically used for weighing samples down to:
1mg on a balance with a readability of 0.001mg*
0.1mg on a balance with a readability of 0.000 1mg*

View our range:
https://ei.uk/product-category/balances/micro/

Semi-Micro Balances

Readability: 0.01mg
Ideal for sensitive measurements in research and pharmaceutical laboratories.
Typically used for weighing samples down to 10mg*

View our range:
https://ei.uk/product-category/balances/semi-micro/

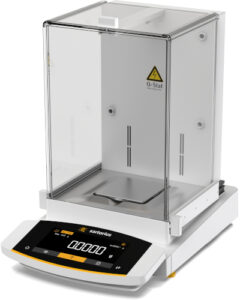

Analytical Balances

Readability: 0.1mg (0.000 1g)
Suitable for chemical analysis, pharmaceutical applications, and high-precision measurements
Typically used for weighing samples down to 100mg*

View our range:
https://ei.uk/product-category/balances/analytical/

Milligram Balances

Readability: 1mg (0.001g)
Used for sample preparation, general laboratory weighing
Typically used for weighing samples down to 1g*

View our range:
https://ei.uk/product-category/balances/milligram/

Precision Top Pan Balances

Readability: 0.01g and 0.1g
Used for sample preparation, general laboratory weighing, and industrial applications
Typically used for weighing samples down to:
10g on a balance with a readability of 0.01g*
100g on a balance with a readability of 0.1g*

View our range:
0.01g: https://ei.uk/product-category/balances/top-pan-10mg/
0.1g: https://ei.uk/product-category/balances/top-pan-100mg/

Top Pan Balances

Readability: 1g
Commonly used in educational settings and industrial applications where high accuracy is not critical
Typically used for weighing samples down to 1g*

View our range:
https://ei.uk/product-category/balances/top-pan-1g/

Having a stable bench for laboratory weighing is super important because even tiny disturbances can mess up your results. Here’s why it matters:

1. Accuracy and Precision
Analytical balances are extremely sensitive. If the bench wobbles, vibrates, or shifts, it can introduce errors or fluctuations in the reading.

2. Eliminates Vibrations
Vibrations from nearby equipment, foot traffic, or even typing can travel through unstable surfaces.

A solid, vibration-dampening bench absorbs or resists movement, ensuring the balance stays still.

3. Safety
If you’re weighing reactive or hazardous substances, an unstable bench could lead to spills or dangerous accidents.

4. Mitigation
It is possible to purchase dedicated weighing benches.  If this is not possible:

• Locate the balance over the legs of a bench – the most stable part of a table
• Move to low-traffic areas where there are fewer people walking by and creating floor vibrations (eg away from doors)
• Do not place balance on a soft pad eg writing mat (creates an unstable surface)

Common Sources of Air Movement in Laboratories

• Drafts from Doors and Windows: Air currents from open doors or windows can affect the balance pan.
• Foot Traffic: The movement of people near the balance can create air disturbances.
• Heating and Ventilation Systems: Airflow from HVAC systems can interfere with weighing accuracy.
• Nearby Equipment: Laboratory equipment like centrifuges, shakers, or fume hoods can generate air currents.
• Fume Cupboards. Your balance always be subject to airflow in a fume Cupboard. But we know from our experience that the finer the readability on your balance the more of an effect the air flow will have.
• Strong Temperature Sources. Air flow / air movement can also be created by strong temperature sources like radiators. If you have your balance located near one this can have an effect.

Strategies to Minimize Air Movement in Laboratories

Strategic Placement:

• Isolate the Balance: Position your laboratory balance in a draft-free area, away from doors, windows, and air vents.
• Minimize Foot Traffic: Reduce activity around the balance to minimize disturbances.
• Consider a Weighing Booth: A dedicated weighing booth can provide a controlled environment, shielding the balance from air currents.

Utilize Windshields:

• Create a Still Zone: Windshields act as barriers, protecting the balance pan from air disturbances.
• Choose the Right Size: Select a windshield that adequately covers the balance and sample.

Calibrate Regularly:

• Maintain Accuracy: Frequent calibration ensures that your laboratory balance compensates for any minor fluctuations caused by air movement.
• Follow Manufacturer Guidelines: Adhere to the specific calibration procedures recommended by your balance manufacturer.
  To find out more about our balance calibration service

Environmental Controls:

• Monitor Temperature and Humidity: Extreme temperature and humidity variations can indirectly affect air currents.
• Control Airflow: Use air conditioning or ventilation systems to regulate airflow in the laboratory.

Electronic filters:

Many balances do have electronic filters built in which could help compensate for this problem, but this doesn’t mean the issue will be completely mitigated. So you shouldn’t rely on these solely .

By implementing these strategies, you can significantly reduce the impact of air movement on your laboratory weighing results. A well-controlled weighing environment will enhance the accuracy and reliability of your measurements, ensuring the integrity of your scientific research.

Remember, precise laboratory weighing is the foundation of accurate scientific research.

© 2024 European Instruments Ltd

Keywords: laboratory balance, precision weighing, vibration, environmental factors, calibration, laboratory equipment

Introduction

Laboratory balances are essential tools for accurate measurements in scientific research, quality control, and other industries. However, their performance can be significantly affected by environmental factors, particularly vibration. Understanding the impact of vibration on weighing accuracy is crucial for ensuring reliable results.

What is Vibration?

Vibration is the mechanical oscillation of a system about an equilibrium point. In a laboratory setting, vibration can originate from various sources, including:

• External Sources:
  • Traffic, construction work, and nearby machinery
  • Air conditioning units and ventilation systems
  • Foot traffic and human movement
• Internal Sources:
  • Laboratory equipment, such as centrifuges and mixers
  • Inefficient benchtop design and unstable surfaces

How Vibration Affects Weighing Performance

Vibration can negatively impact the performance of a laboratory balance in several ways:

1. Reduced Precision:
   • Vibration causes fluctuations in the balance’s readings, leading to decreased precision and uncertainty in measurements.
2. Increased Weighing Time:
   • The balance’s internal weighing mechanism may struggle to stabilize, resulting in longer stabilization times and reduced throughput.
3. Systematic Errors:
   • In severe cases, vibration can introduce systematic errors into measurements, leading to inaccurate results.

Mitigating the Effects of Vibration

To minimize the impact of vibration on laboratory balance performance, consider the following strategies:

1. Choose a Stable Location:
   • Place the balance on a sturdy, vibration-dampening surface, such as a vibration isolation table or a solid benchtop away from sources of vibration.
2. Consider Environmental Factors:
   • Avoid placing the balance near sources of vibration, such as air conditioning units, centrifuges, or busy corridors.
3. Regular Calibration:
   • Calibrate your balance regularly to ensure accuracy and compensate for any potential drift caused by vibration or other factors.
4. Use Anti-Vibration Mats:
   • Place anti-vibration mats under the balance to further reduce the transmission of vibrations.
5. Optimize Laboratory Design:
   • Consider the overall laboratory layout to minimize vibration sources and their impact on sensitive equipment.

Conclusion

By understanding the impact of vibration on laboratory balance performance and implementing appropriate mitigation strategies, you can significantly improve the accuracy and reliability of your weighing results. By investing in a stable environment, regular calibration, and proper equipment maintenance, you can ensure that your laboratory balance delivers consistent and precise measurements.

© 2024 European Instruments Ltd

Keywords: laboratory balance, precision weighing, temperature, environmental factors, calibration, laboratory equipment

Introduction

Laboratory balances are essential tools for accurate measurements in scientific research, quality control, and other industries. However, their performance can be significantly influenced by environmental factors, including temperature. Understanding the impact of temperature on weighing accuracy is crucial for ensuring reliable results.

How Temperature Affects Weighing Performance

Temperature fluctuations can affect the performance of a laboratory balance in several ways:

1. Thermal Expansion:
   • As temperature increases, the materials of the balance, such as the balance arm, pan, and internal components, expand. This expansion can lead to changes in the balance’s calibration and result in inaccurate measurements.
2. Air Density:
   • Temperature affects air density. As temperature increases, air density decreases, which can influence buoyancy effects on the weighed object. This can lead to systematic errors in measurements, especially for objects with low density.
3. Electronic Components:
   • The electronic components within the balance, such as sensors and microprocessors, can be sensitive to temperature changes. Extreme temperature fluctuations can affect their performance, leading to instability and inaccurate readings.

Mitigating the Effects of Temperature

To minimize the impact of temperature on laboratory balance performance, consider the following strategies:

1. Temperature-Controlled Environment:
   • Ideally, laboratory balances should be placed in a temperature-controlled environment with minimal temperature fluctuations.
2. Regular Calibration:
   • Calibrate your balance regularly to account for changes in temperature and other environmental factors.
3. Warm-Up Period:
   • Allow the balance to warm up to the ambient temperature before using it to ensure stable performance (a minimum period of one hour is recommended, however this increases for high accuracy weighing equipment
4. External Heat Source:
   • Position the balance away external heat sources that warm the balance up eg direct sunlight / heat from radiators / light bulbs and other sources of heat to prevent rapid temperature changes.  If you notice the balance operates erratically at the same time each day, it may be due to the sun shining directly on it.
5. Use Temperature Compensation:
   • Some high-precision balances have built-in temperature compensation features that can help to correct for temperature-related errors.
6. Stand by mode
   • Leave the balance on and  in stand by mode when not in use. This is achieved by leaving the balance connected to the mains, and then turning the balance off on the keypad. In this mode it will not cool down completely, staying close to the recommended operating temperature.

Conclusion

By understanding the impact of temperature on laboratory balance performance and implementing appropriate mitigation strategies, you can significantly improve the accuracy and reliability of your weighing results. By investing in a stable environment, regular calibration, and proper equipment maintenance, you can ensure that your laboratory balance delivers consistent and precise measurements.

© 2024 European Instruments Ltd

Keywords: laboratory balance, precision weighing, accuracy, calibration, laboratory equipment

Introduction

Laboratory balances are precision instruments used to measure mass accurately. To ensure reliable and accurate measurements, it’s essential to follow proper weighing techniques. One crucial factor is the placement of the sample on the balance pan. Centering the sample is a simple yet critical step that can significantly impact the accuracy of your results.

The Importance of Centering

When a sample is not centred on the balance pan, it can lead to several issues:

1. Inaccurate Readings:
   • Eccentric Loading: If the sample is off-centre, it can cause uneven distribution of weight on the balance’s load cells. This can lead to inaccurate readings, as the balance may not be able to compensate for the uneven load.
   • Reduced Precision: Off-centre loading can reduce the balance’s precision, making it more difficult to obtain precise measurements, especially for small samples.
2. Damage to the Balance:
   • Extreme off-centring can put unnecessary stress on the balance’s components, potentially leading to damage or reduced lifespan.
3. Calibration Errors:
   • If the balance is calibrated with a centred load and then used with off-centre loads, the calibration accuracy may be compromised.

Best Practices for Centring Your Sample

To ensure accurate and reliable measurements, follow these best practices:

1. Use a Centring Dish:
   • A centring dish is a small, circular dish designed to hold your sample. Place the dish on the balance pan and centre it. Then, carefully place your sample in the centre of the dish.  Remember to tare the value of the dish out.
2. Visual Inspection:
   • Before starting the weighing process, visually inspect the balance pan to ensure the sample is centred.
3. Gentle Placement:
   • Place the sample on the pan gently to avoid any sudden movements that could affect the balance’s reading.
4. Avoid Touching the Sample Directly:
   • To minimize the transfer of heat and moisture, use tweezers or other appropriate tools to handle the sample.

Conclusion

By following these simple guidelines and ensuring that your sample is properly centred on the balance pan, you can significantly improve the accuracy and reliability of your weighing results. This will ultimately enhance the quality of your laboratory work and scientific research.
